Managing the Optical Network
    Publish at Scribd or explore others:            Marketing              Management                  linux              Networking


Origin of Optical Network

Telecommunication Networks build using various communication media

- Twisted pair copper wire
- Coaxial cable
- Wireless (Radio, microwave, satellite, infrared)
- Optical fiber

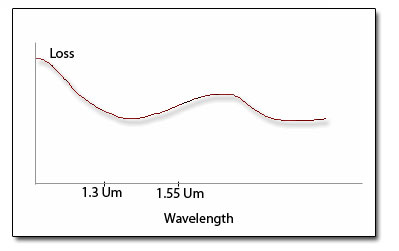

Optical Fiber - Properties


Advantages of Optical Fiber

- Large Bandwidth-distance product
- immunity to noise and intereference
- very low cost per unit bandwidth
- easy upgradability using WDM technology
- Tapping of signal from fiber without being detected - difficult

Disadvantages of Optical Fiber

- Optical fiber Networks have high capacity
- Can be used for providing the high bandwidth services
- Even in wireless, infrared means high bandwidth connectivity

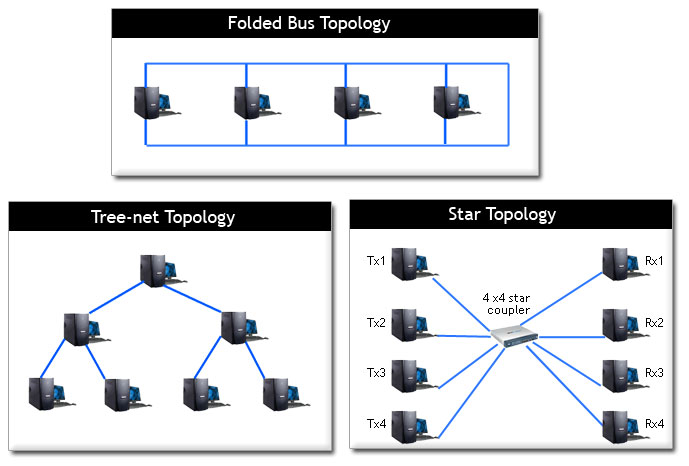

Broadcast Optical Networks

- Optical fiber Networks have high capacity
- Can be used for providing the high bandwidth services
- Even in wireless, infrared means high bandwidth connectivity

In Broadcast Networks,
-Bandwidth of single channel - shared by all the users
-Media access using media access control protocols
-MAC protocols need to consider
-The network is high speed
-High speed network - packet transmission time
-comparable to packet propagation time


To use the available bandwidth
,
- Wavelength division multiple access (WDMA)
- Time division multiple access (TDMA)
- Code division multiple access (CDMA)


Optical TDMA ,CDMA implementations

- need very short pulses (can be generated by mode locked lasers).

- Time division multiplexers/ demultiplexer requires very tight tolerance of fiber length (due to tight timing requirments).
- Encoder and decoders will require again very tight tolerance in fiber length used for delay lines.
- Dispersion - need to be taken care of WDMA.


Media access control protocols for multiple channels classification based on tunability
- Fixed transmitter fixed receivers (FTFR)
- Tunable transmitter fixed receivers (TTFR)
- Fixed transmitter tunable receiver (FTTR)
- Tunable transmitter tunable receiver (TTTR)

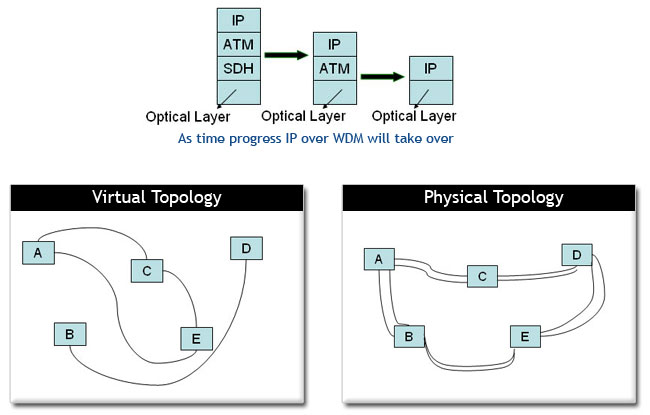

Strong similarity with switching networks.Virtual Topology is built over broadcast medium

Some other multihop topologies investigated in literature

- Hypercube
- Manhatten street Network ( Torus)
- Dual bus
- Ring

For MAC protocols with tunable component proposed solutions generally use
- Scheduling - a schedule for transmission and reception on the basis of statistics is computed
  periodically by centralized or distributed algorithms and used for coordination.
- Pretransmission coordination using dedicated channel

Switched Network
- Uses Optical Switches
- Classified as circuit switched or packet switched .commercially emphasis on circuit switched all-optical networks
- due to near term feasibility
- also known as wavelength routed networks
These network can be used to provide virtual topology to be used by SDH,ATM or directly by IP layer.

Issues
- Estimation of condition when the reconfiguration is needed
  (will be done by IP layer)
- Management algorithms for optical layer to work with limited
  wavelength.
- Fault Management in Optical Layer

Other exciting things in optical Networks
- Switching techniques and architectures
- Networks architectures using devices and phenomenon based on optical nonlinearity
- Multiwavelength soliton networks
